Description
Projection System: 3LCD Technology, RGB liquid crystal shutter
LCD Panel: 0,62 inch with C2 Fine
Color Light Output: 4.100 Lumen- 2.800 Lumen (economy) In accordance with IDMS15.4
White Light Output: 4.100 Lumen - 2.800 Lumen (economy) In accordance with ISO 21118:2020
Resolution: 1080p
High Definition: Full HD
Aspect Ratio: 16:9
Contrast Ratio: Over 2.500.000 : 1
Light source: Laser
Laser Light source: 20.000 hours Durability High; 30.000 hours Durability Eco
Keystone Correction: Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing: 10 Bits
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Colour Reproduction: Upto 1.07 billion colours
Throw Ratio: 0,25 - 0,35:1
Zoom: Digital, Factor: 1 - 1,35
Lens: Optical
Screen Size: 60 inches - 100 inches
Projection Lens F Number: 1,6
Projection Lens Focal Length: 3,7 mm
Projection Lens Focus: Manual
Offset: 5 : 1

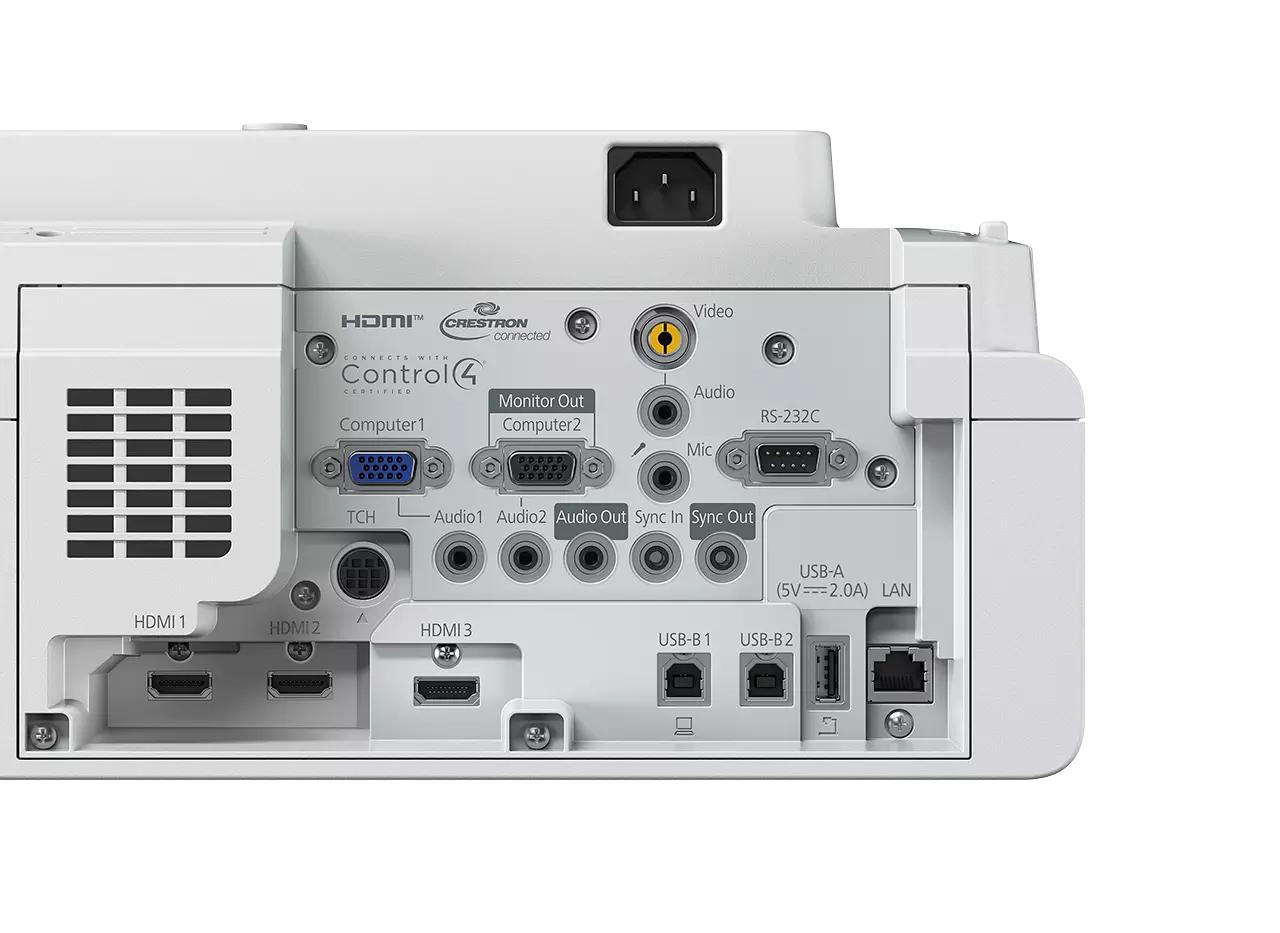

Interfaces: USB 2.0-A (2x), USB 2.0 Type B (Service Only) (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out, Multi-Touch interface (optional)
Network Protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Security: Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Other features: 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Interactive, PC free annotation, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code
Interactivity: Yes - pen and finger-touch
Video Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM
Projector control: via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Power consumption: 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)
Heat Dissipation: 895 BTU/hour (max)
Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions: 356 x 395 x 133 mm (Width x Depth x Height)
Product weight: 6 kg
Noise Level: Normal: 37 dB (A) - Economy: 27 dB (A)
Supported Temperature: Storage -10° C - 60° C
Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
Included Software: Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management
Options: Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Loudspeaker: 16 Watt
Room Type / Application: Meeting room / Classroom
Positioning: Ceiling Mounted, Desktop, Wall Mounted
Colour: White
