Description
|

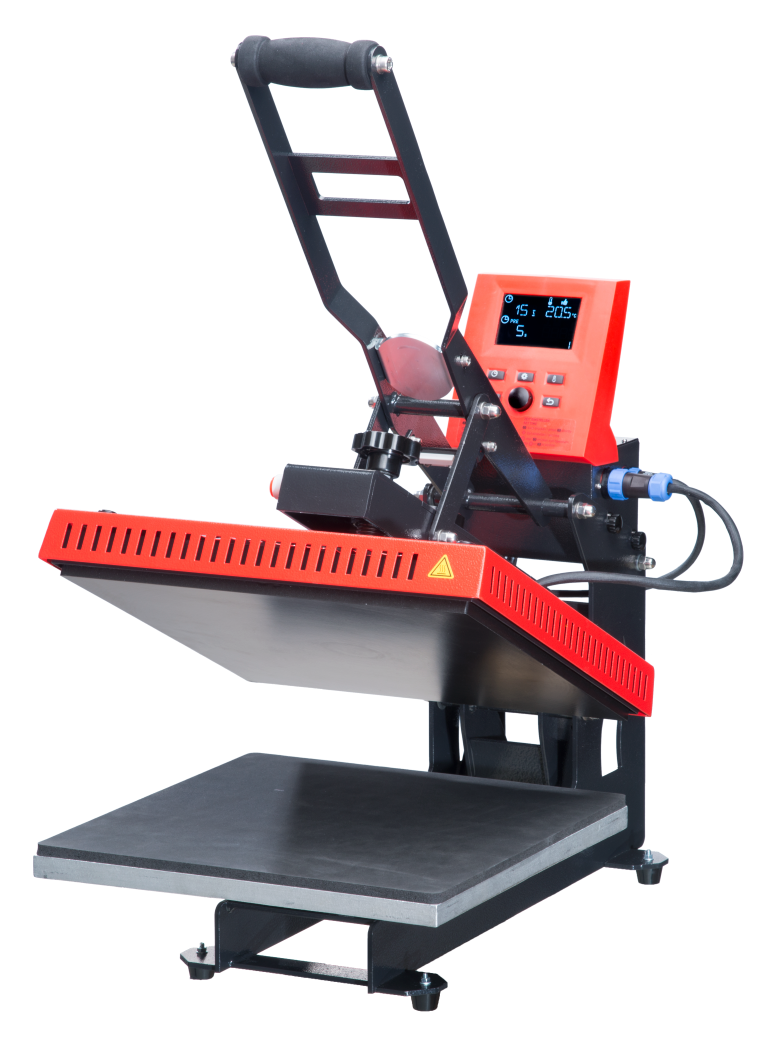

Dimensions open |
45cm x 93cm x 73cm |
|

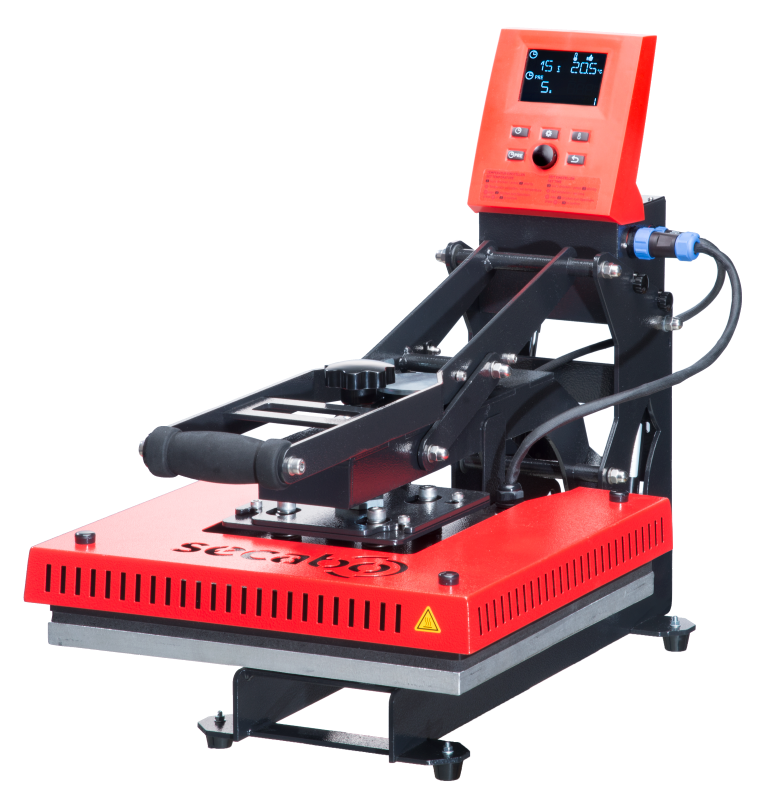

Dimensions closed |
45cm x 57cm x 73cm |
|
working area |
38cm x 38cm |
|
Size Diaphragm base plate |
45cm x 45cm |
|
scope of delivery |
Mechanical base, Heating plate, Base plate, Diaphragm base plate, Fastening set, Controller Box, C13 Power cable, Tools, Operating instructions |
|
pressure setting |
Height adjustment of the heating plate by means of hand wheel, fine adjustment with fan ball and drain valve of the membrane |
|
max. downforce |
250 g / cm ² |
|
max temperature |
225 ° C |
|
maximum time preset |
999 s |
|
max. clam angle |
40 ° |
|
power supply |
AC voltage 230V / 50Hz - 60Hz, 1.8kW |
|
environment |
+ 5 ° C - + 35 ° C / 30% - 70% humidity |
|
weight without packaging |
47.00 kg |
|
weight with package |
50.00 kg |
|
Brand |
Secabo |
