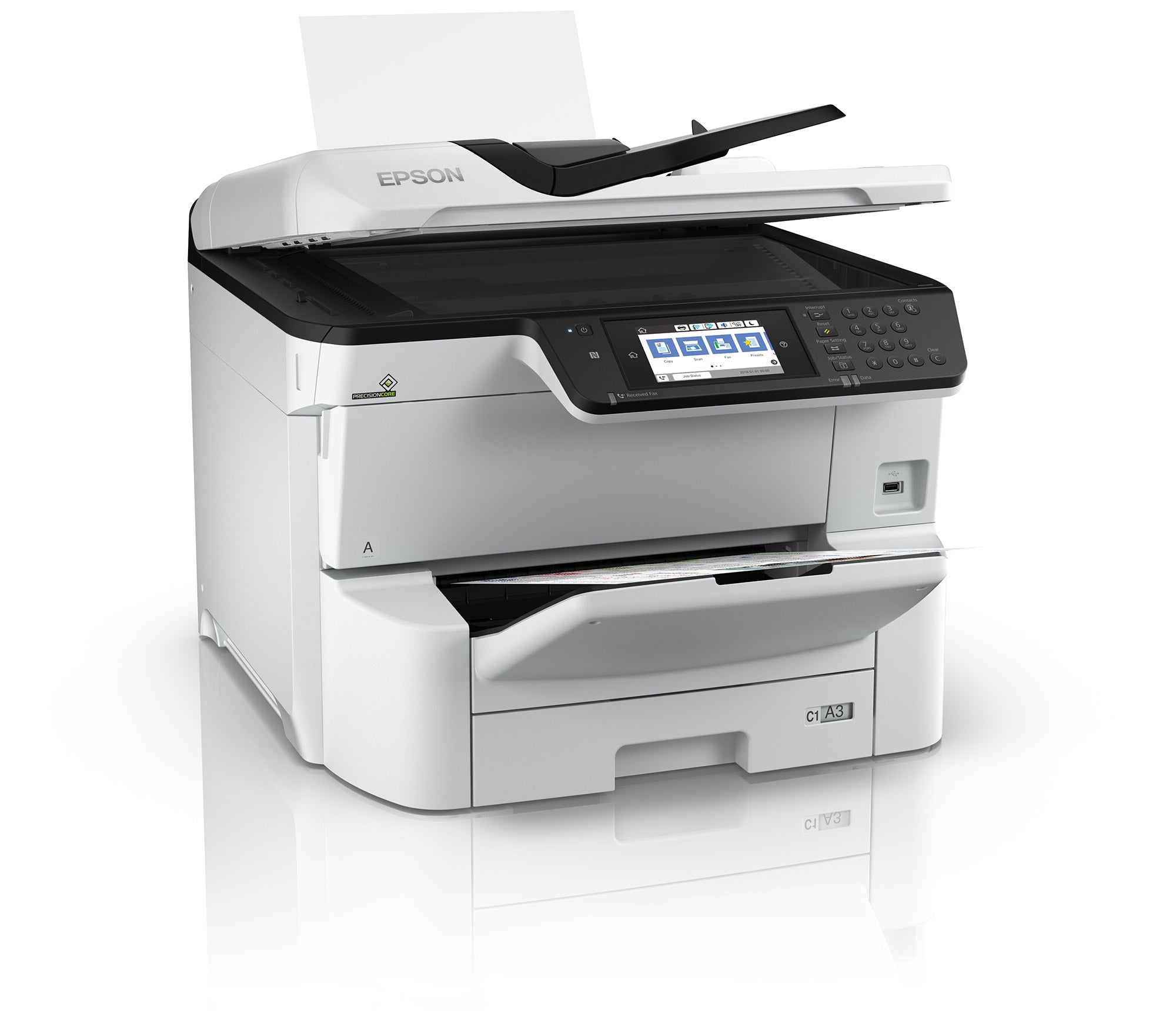

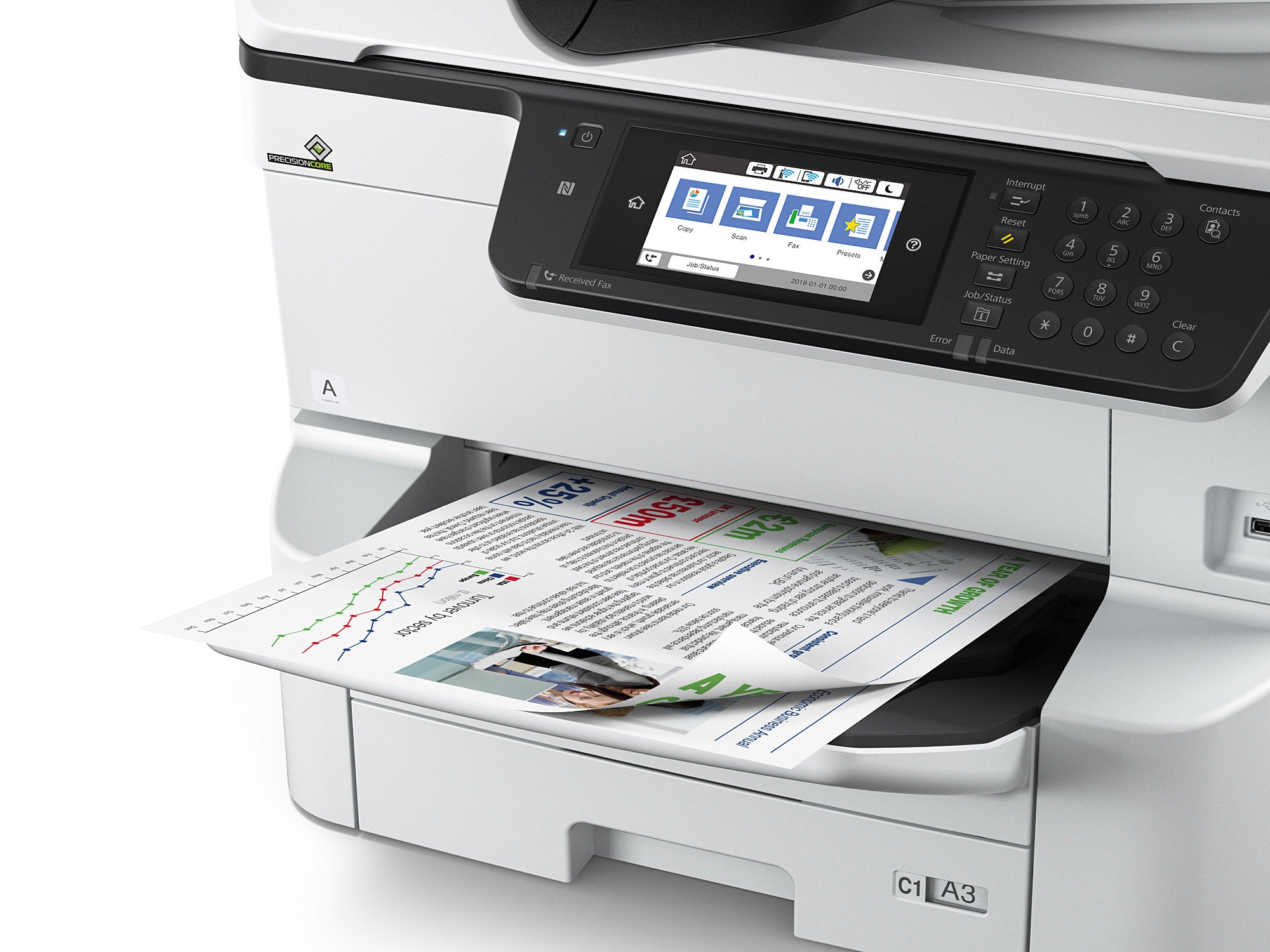

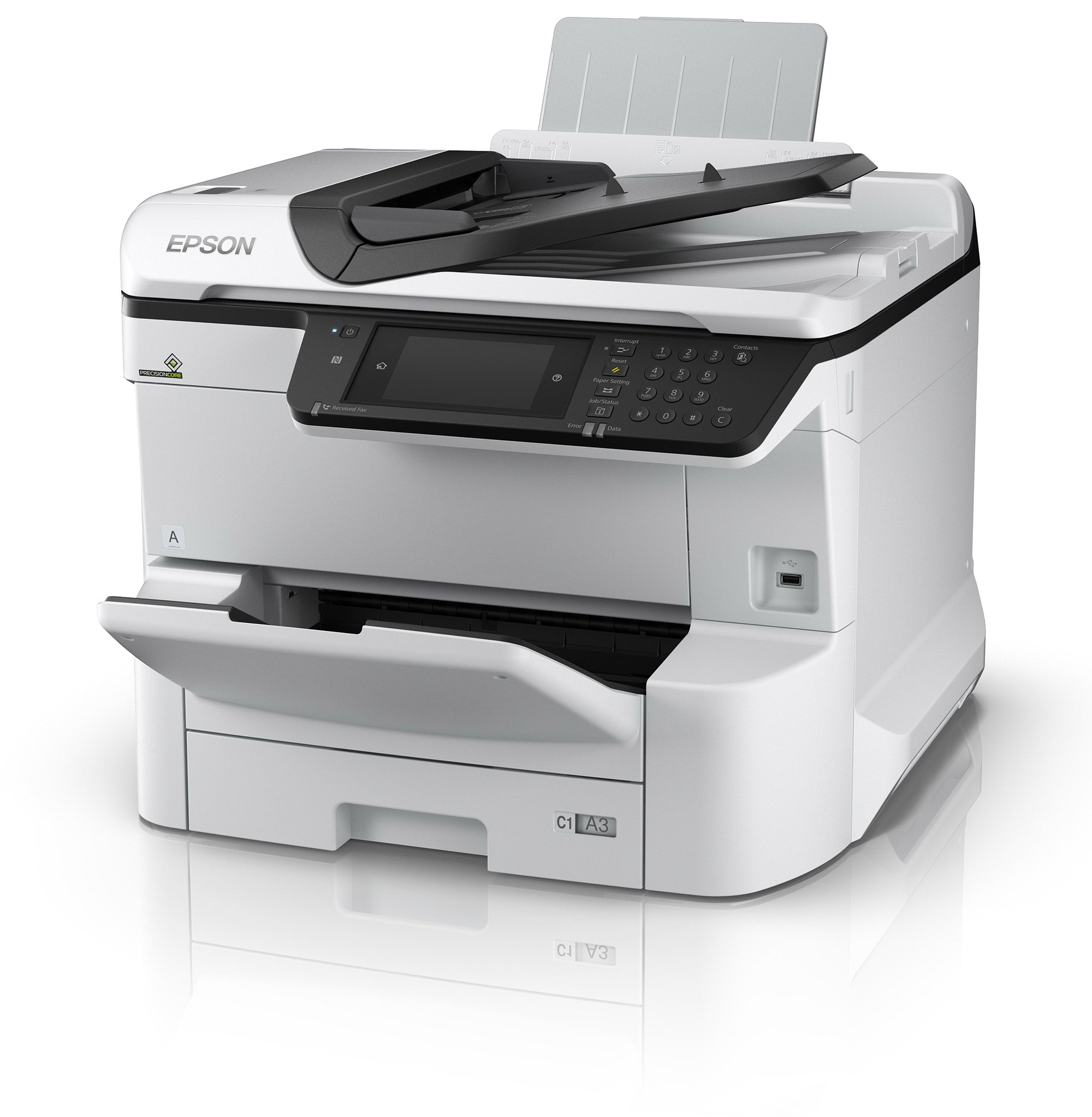

Epson WorkForce Pro WF-C8690DWF (C11CG68401)

Printing Method: PrecisionCore™ Print Head
Nozzle Configuration: 800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size: 4,6 pl, With Variable-Sized Droplet Technology

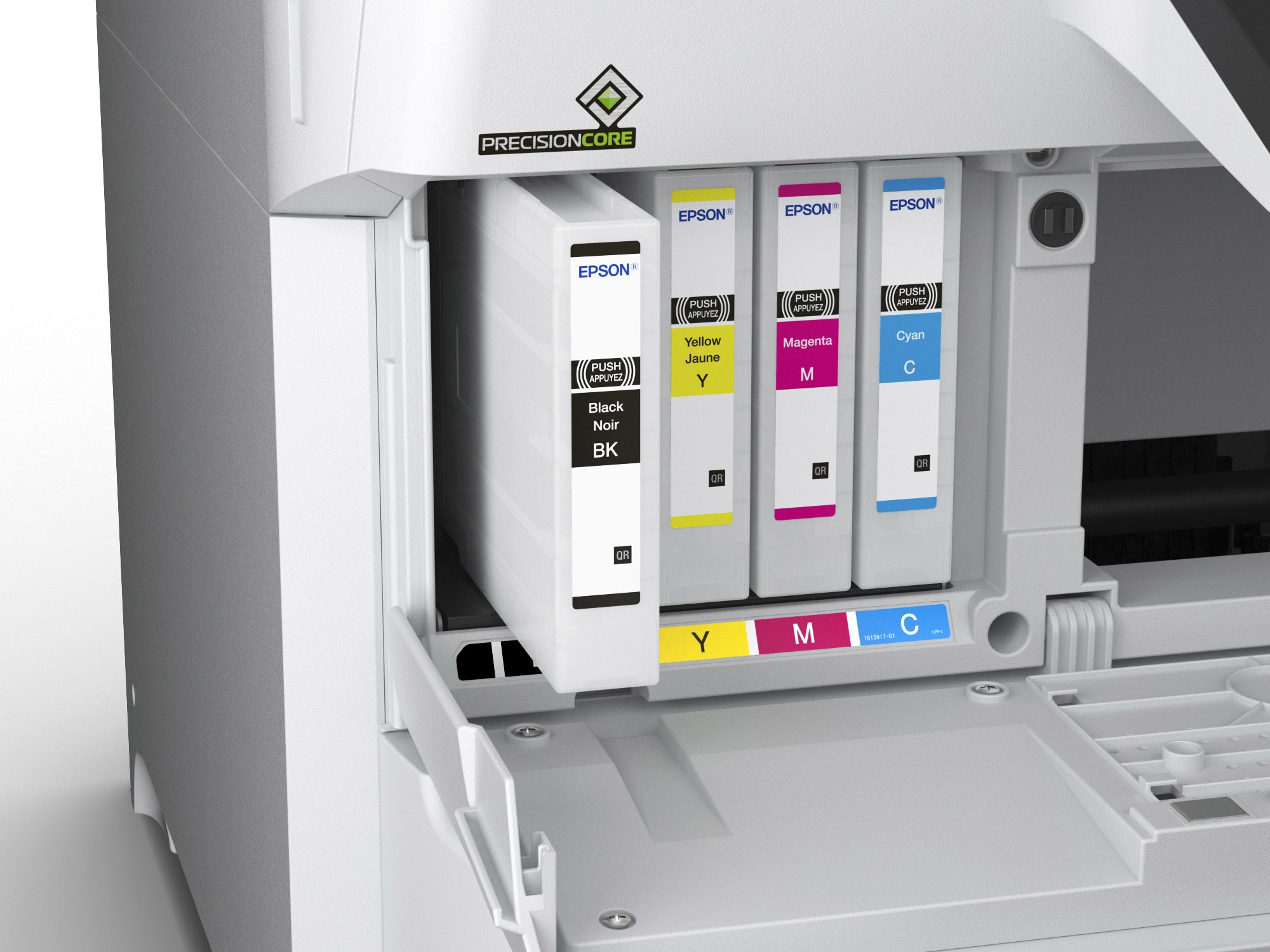

Ink Technology: DURABrite™ Pro
Category: Office Workgroup, Office Departmental
All-in-One Functions: Print, Scan, Copy, Fax

First Page Out: Monochrome 5,5 Seconds, Colour 5,5 Seconds
Printing Speed ISO/IEC 24734: 24 pages/min Monochrome, 24 pages/min Colour
Duplex Printing Speed ISO/IEC 24734: 16 A4 Pages/min Monochrome, 16 A4 Pages/min Colour
Printing Speed ISO/IEC 24734 (A3): 13 pages/min Monochrome, 13 pages/min Colour
Duplex Printing Speed ISO/IEC 24734 (A3): 11 A4 Pages/min Monochrome, 11 A4 Pages/min Colour
Printing Speed: 35 pages/min Monochrome (plain paper 75 g/m²), 35 pages/min Colour (plain paper 75 g/m²)
Printing Resolution: 4.800 x 1.200 DPI
Printing Volume: 75.000 pages per month
Recommended Duty Cycle: 500 - 5.000 pages per month
Colours: Black, Cyan, Yellow, Magenta

Single-sided scan speed (A4 black): 200 dpi (with ADF); , 25 ipm with ADF scan 200 dpi (flatbed) 4 sec. with flatbed scan
Doubled-sided scan speed (A4 black): 200 dpi (with ADF); , 45 ipm with ADF scan
Single-sided scan speed (A4 colour): 200 dpi (with ADF); , 25 ipm with ADF scan 200 dpi (flatbed) 5 sec. with flatbed scan
Doubled-sided scan speed (A4 colour): 200 dpi (with ADF); , 45 ipm with ADF scan
Optical Resolution: 1.200 DPI x 2.400 DPI (Horizontal x Vertical)
Optical Resolution (ADF): 600 DPI x 600 DPI (Horizontal x Vertical)
Advanced document integration: Scan to Email, Scan to FTP, Scan to Microsoft SharePoint®, Scan to Network folders, Computer (Epson Document Capture Pro), USB Memory Device / Card
Output formats: JPEG, TIFF, PDF
Scanner type: Contact image sensor (CIS)

Type of fax: Walk-up black and white and colour fax capability
Fax Transmission Speed: Up to 33.6kbps / Approx. 3 sec/page
Error correction mode: CCITU/ITU Group3 fax with Error Correction Mode
Fax speed dials (max): 2.000 names and numbers
Page memory: Up to 550 pages/ 6MB (ITU-T No. 1 chart)
Fax Functions: PC Fax, Auto Redial, Address Book, Delay Send, Broadcast Fax

Copy Speed: Up to 22 ipm Black, Up to 21 ipm Colour
*Simplex ADF 600 x 600 dpi (ISO/ IEC 24735)
Copy resolution (dpi): 600 x 1200
Reduction / Enlargement: 25 % - 400 % Auto fit function
Maximum number of copies: 999
Maximum Copy Size: A3

Network Printing Protocols: IPP, LDP, Port 9100, WSD
Network Management Protocols: SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, Ping
Interfaces: USB 3.0 Type B, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, USB host, Near Field Communication (NFC), USB 2.0-A (2x)
WLAN Security: WEP 64 Bit, WEP 128 Bit, WPA2 Enterprise, WPA2 PSK (AES)
Network Protocol: TCP/IPv4, TCP/IPv6

Paper Formats: A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), B5, C6 (Envelope), C4 (Envelope), No. 10 (Envelope), Letter, 10 x 15 cm, 13 x 18 cm, 20 x 25 cm, 16:9, Legal, A3 (29.7x42.0 cm), A3+

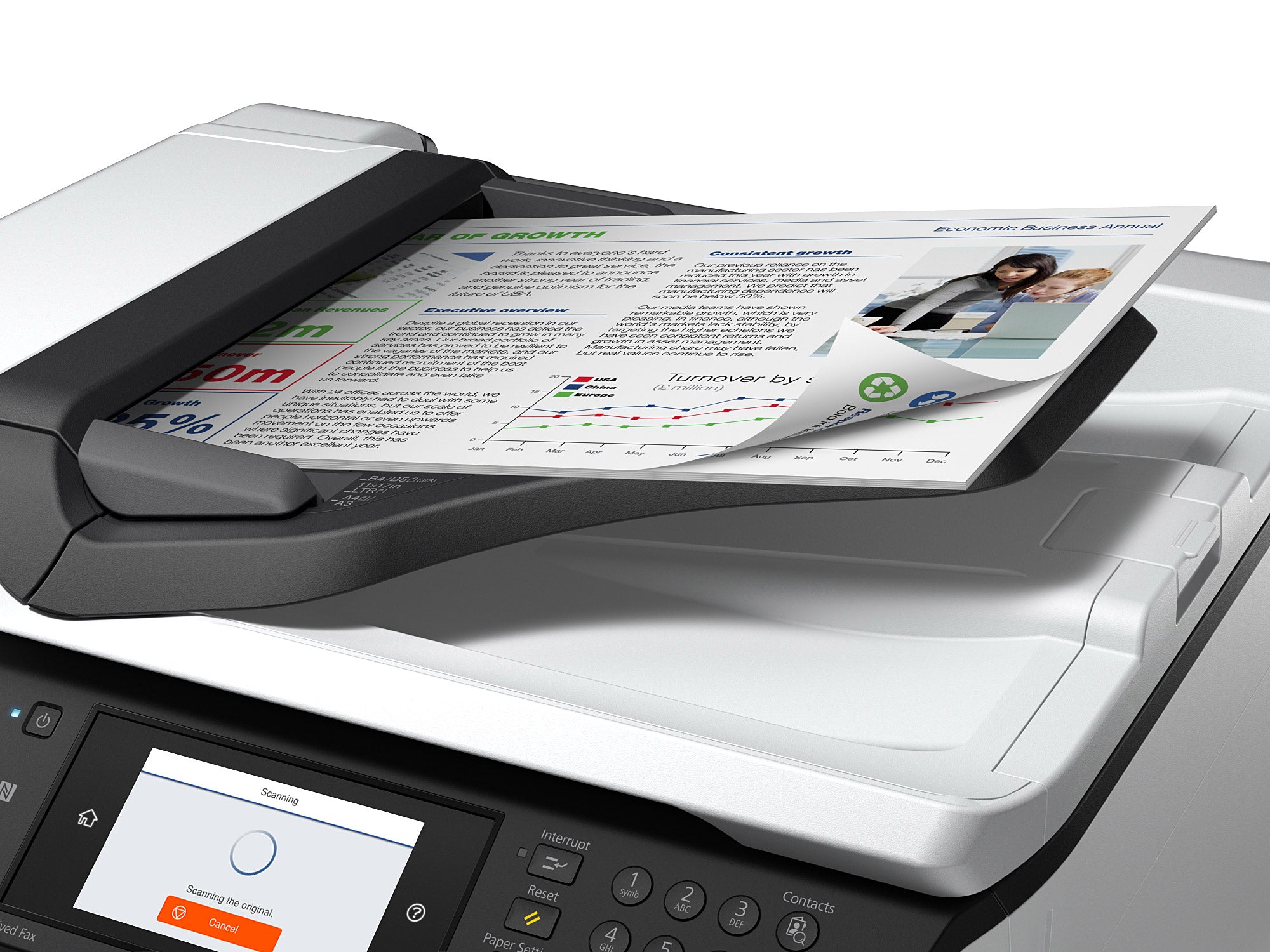

Automatic Document Feed: 50 pages
Compatible Paper Weight: 64 g/m² - 300 g/m²
Duplex: Yes
Standard Paper input: 335 Sheets Standard, 85 Sheets MP tray, 250 Sheets paper tray
Output Tray Capacity: 250 Sheets
Paper Tray Capacity: 335 Sheets Standard, 1.835 Sheets Maximum
Standard paper tray(s): 85-Sheet Multi-Purpose Tray, 250-sheet paper tray
Optional paper tray(s): 3 x 500 sheet paper tray, Cabinet
Maximum paper input: 1.835
Rear paper path (special media): Yes
Number of paper trays: 3

Paper Input Name: RASF
Paper Formats: A3+, A3, A4, A5, A6, B4, B5, B6, C4 (Envelope), C5 (Envelope), C6 (Envelope), DL (Envelope), Letter, 10 x 15 cm, 13 x 18 cm, 16:9, HLT, User defined, Legal, Executive, SRA3, Tabloid
Custom sizes: Min 55x 330 mm to Max 127x 1.200 mm
Compatible paper weight: 64 g/m² - 300 g/m²
Paper Capacity 1: 85 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper

Paper Input Name: C1
Paper Formats: A3, A4, A5, A6, B4, B5, B6, Letter, HLT, Legal, Executive, Tabloid
Compatible paper weight: 64 g/m² - 200 g/m²
Paper Capacity 1: 250 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead

Paper Input Name: Duplex
Paper Formats: A3, A4, A5, B4, B5, B6, Letter, HLT, Legal, Executive
Compatible paper weight: 64 g/m² - 150 g/m²

Energy Use: 39 Watt (standalone copying, ISO/IEC 24712 pattern), 1,3 Watt (sleep mode), 18 Watt (Ready), 0,2 Watt (Power off), TEC 0,2 kWh/week
Supply Voltage: AC 220 V - 240 V
Product dimensions: 613‎ x 755 x 493 mm (Width x Depth x Height)
Product weight: 45,8 kg
Noise Level: 6,8 B (A) according to ISO 7779 pattern with Epson Premium Glossy Photo Paper / Photo RPM mode - 51 dB (A) according to ISO 9296 Compatible Operating Systems: Android 4.0+, Linux, Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003, Windows Server 2003 (32/64bit), Windows Server 2003 R2 x64, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista (32/64 bit), Windows XP SP3, XP Professional x64 Edition SP2
Sound Power: Operation: 6,8 B (A)
Noise: Operation: 51 dB (A)

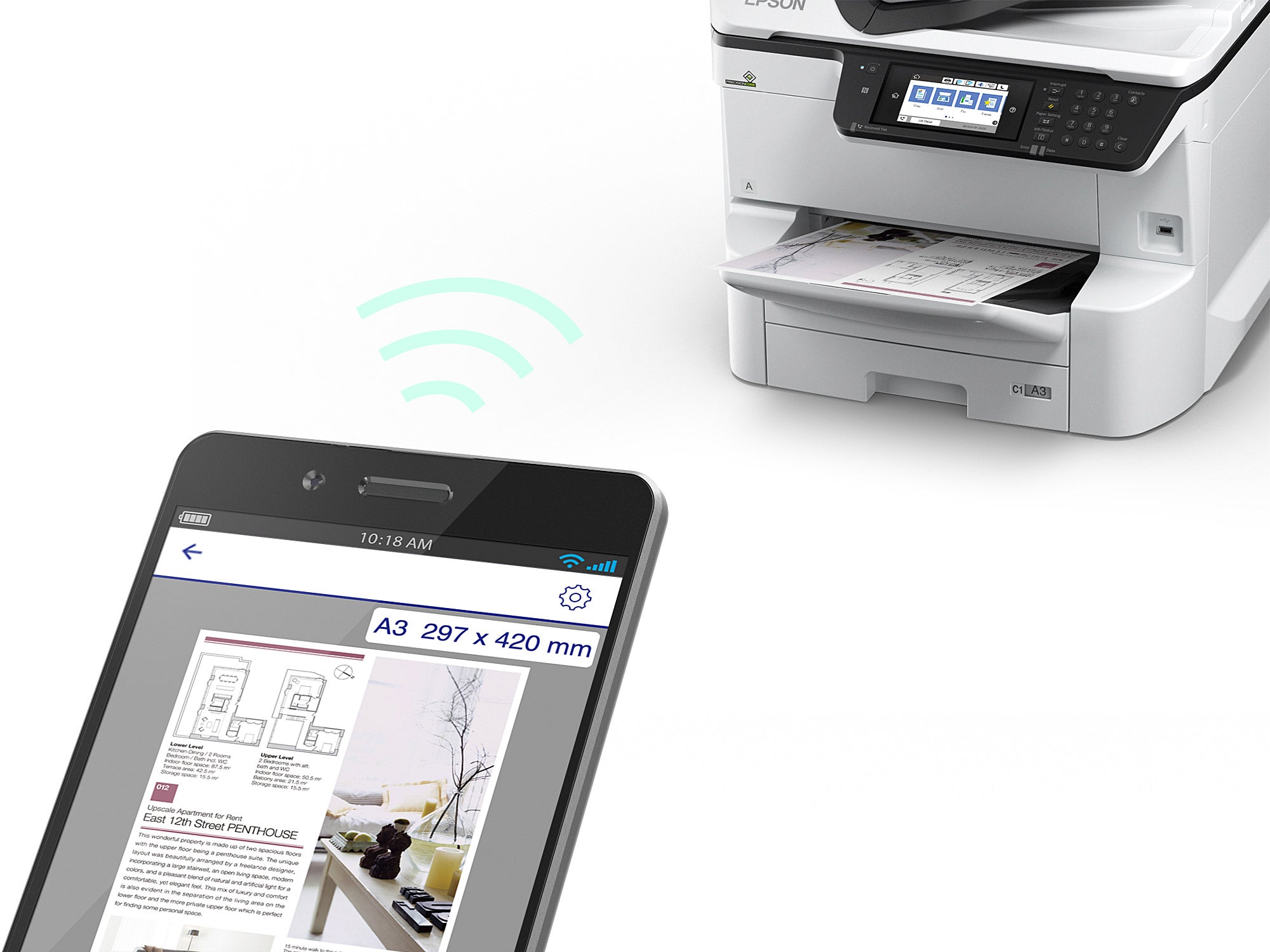

Mobile and Cloud printing services: Epson Connect (iPrint, Email Print, Remote Print Driver, Scan-to-Cloud), Apple AirPrint, Google Cloud Print
Power supply: 220V, 240V
What's in the box: Main unit, Power cable, Quick Setup Guide, User Manual (CD-ROM), Warranty card

Features: Touchscreen, Direct scan-to-print without PC, Direct print from USB

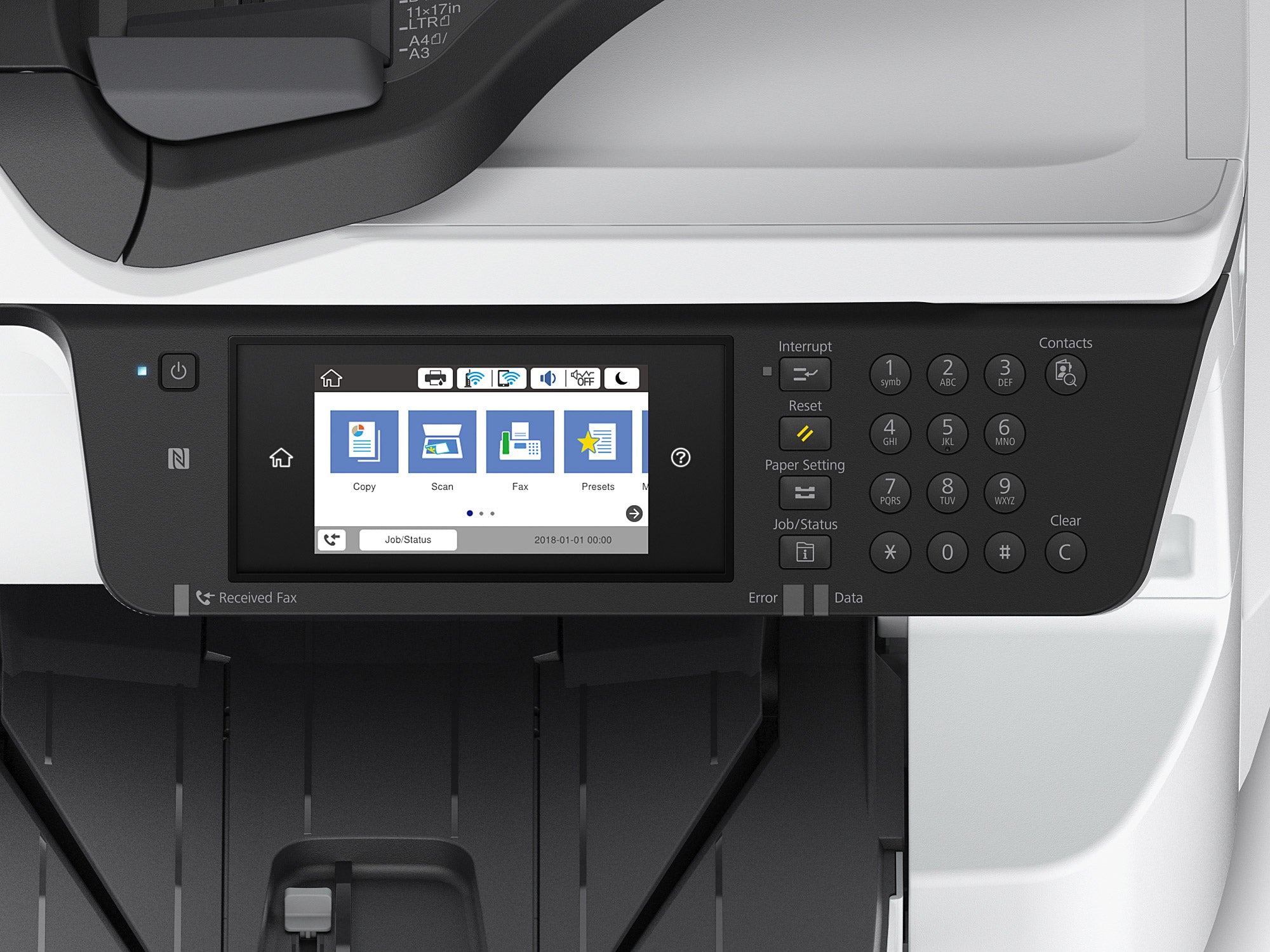

Panel: Type: Color, Touchscreen, Diagonal: 12,7 cm
Media Handling: Automatic duplex (A4/A3, plain paper), Rear specialty media feed, Thick Media Support

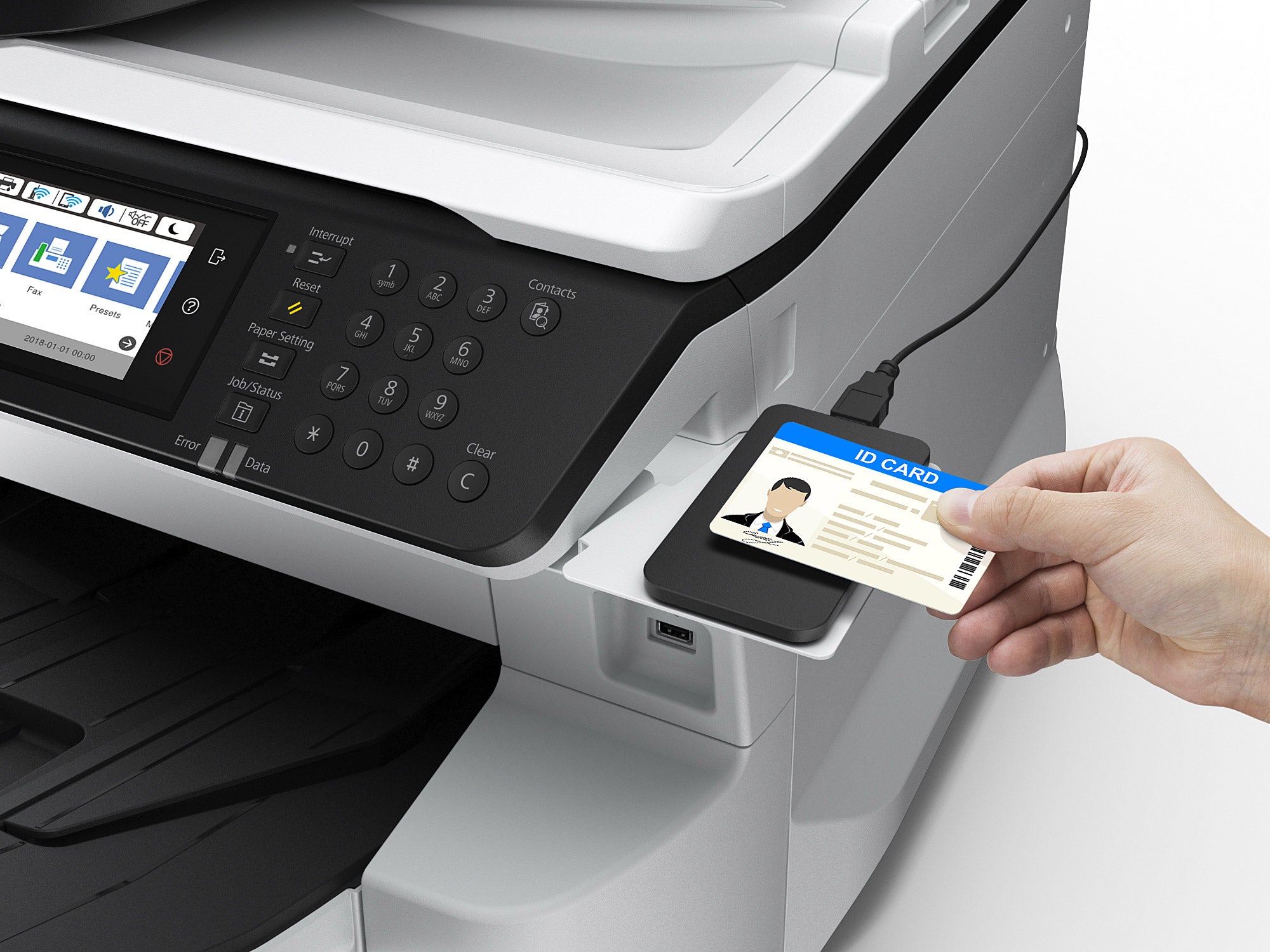

Security Functions: Limit access function with Epson Web Config, Secure confidential printing with PIN code release, LDAP Address Book, IPsec, IEEE802.1x, SSL (Server authentication), Panel Admin Mode

Emulations: PCL5c, PCL6, ESC/P-R, PostScript 3, PDF 1.7
