The device can be connected and controlled via Bluetooth with a mobile device and the Secabo Smart Transfer App.
Secabo Smart Transfer App
The device is ready for control via the Secabo app. With the aid of this app, suitable transfer parameters can be selected for your application.
Duration and temperature can easily be adjusted and monitored using the digital controller.
Variable work pressure
The work pressure is easy to adjust - in each case matching the transfer object and procedure.
The safety and quality of this device is constantly monitored - according to German safety standards.
Interchangeable base plates available - also in combination with a quick-change system
A state-of-the-art controller reduces the temperature fluctuations to a minimum, thus ensuring consistently good transfer results.
The heat press automatically opens after the set time has elapsed.

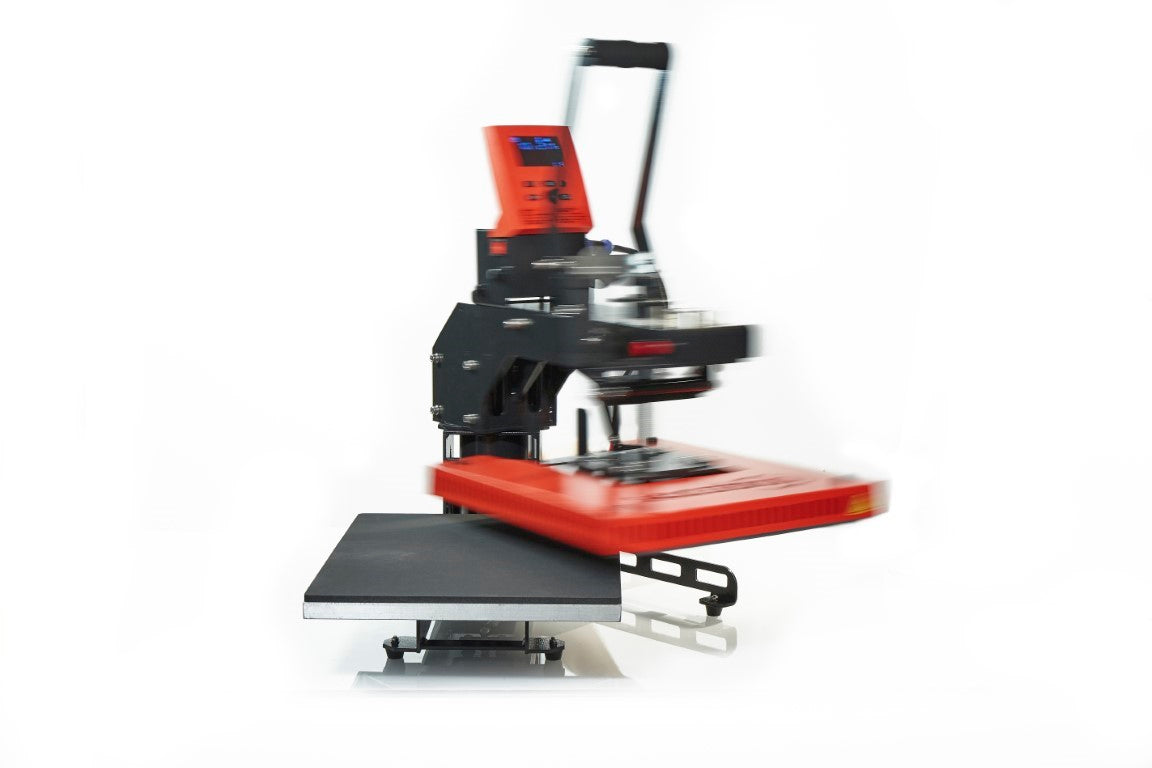

The press can be opened over 110°, thus guaranteeing relaxed and safe working.
Precise temperature distribution
The high-quality heat plate ensures an exact temperature distribution over the entire heating surface.
|Working area size:||40x50cm|
|Adjustment of the Max. Object height:||70mm|
|Swivel angle:||110 °, opening to the right or left possible|
|Max. temperature:||225 °C|
|Max. contact pressure:||250 g/cm²|
|Max. preset time:||999 s|
|Pressure setting:||Height-adjustment of the heat plate via hand wheel|
|Power supply:||AC voltage 230V / 50Hz - 60Hz, 2kW|
|Environment:||+5°C - +35°C / 30% - 70% relative humidity|
|Dimensions with pedestal boom:||W: 596 mm x D:1070 mm H:854 mm|
|Items included:||heat press, power cord, english manual|
|Optional:||Quick change system, exchangeable base plates, slide extension, heated base plate TB7, Softheat heat plate SH7|
|weight without packaging||64,00 kg|
|weight with package||73,00 kg|
