აღწერა

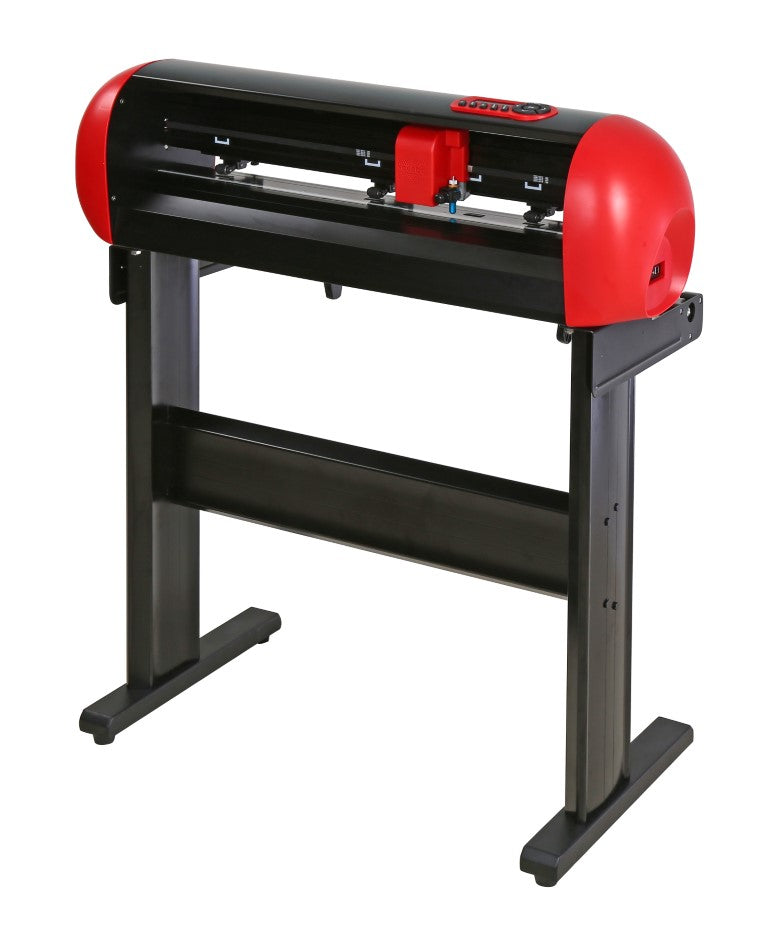

The cutting plotters of the CIV series from Secabo are a consistent further development of the well-known CIII cutting plotter series from Secabo. The use of the Secabo C60IV cutting plotter is possible due to the improved cutting quality as well as higher reliability and precision in almost all professional areas of advertising technology. With a cutting width of up to 61cm, the C60IV cutting plotter can handle even extensive jobs and large quantities. With its stepper motor, all common materials such as adhesive foils, self-adhesive foils, flock foils, flex foils, stencil foils, paper, cardboard etc. in widths of up to 72cm can be processed with the new Secabo C60IV cutting plotter. The large illuminated display and the large buttons enable easy operation of the Secabo C60IV cutting plotter, with the improved LAPOS2 technology, printed films can be cut with precise contours. The C60IV cutting plotter is conveniently controlled via the included DrawCut LITE cutting software.
- Simple installation on the PC, no additional drivers required
- Error-free plotting even with extensive plots
- Joint lowering of all pinch rollers via a central lever
- Precise cut even with small fonts
- LAPOS2 Contour cut function
ტექნიკური მახასიათებლები
| dimensions | 92cm x 26cm x 26cm |
| scope of delivery | Knife holder, drag knife, plotting pad DIN A3, plotting pen, connecting cable, software, operating instructions |
| countour cutting function | LAPOS², 4 crop marks |
| max. downforce | 500 g |
| max. media width | 720 mm |
| min. media width | 50 mm |
| max. media thickness | 1 mm |
| max. cutting size | 630 mm |
| max. cutting speed | 600 mm/s |
| mech. resolution | 0.025 mm |
| interfaces | 0.025 |
| motor | stepper motor |
| weight without packaging | 16,00 kg |
| weight with package | 16,00 kg |
| Brand | Secabo |
