Printing Method: PrecisionCore™ Micro TFP printhead
Nozzle Configuration: 7.230 Nozzles Black, 7.230 Nozzles per Color
Minimum Droplet Size: 3,8 pl, With Variable-Sized Droplet Technology
Ink Technology: DURABrite™ ET
Printing Resolution: 4.800 x 2.400 DPI
Category: Office Workgroup, Office Departmental
All-in-One Functions: Print, Scan, Copy, Fax
Number of colours: 4 colour
First Page Out: Monochrome 6 Seconds, Colour 6 Seconds
Printing Speed ISO/IEC 24734: 40 pages/min Monochrome, 40 pages/min Colour
Duplex Printing Speed ISO/IEC 24734: 40 A4 Pages/min Monochrome, 40 A4 Pages/min Colour
Printing Resolution: 600 x 2.400 DPI
Recommended Duty Cycle: 5.600 - 60.000 pages per month

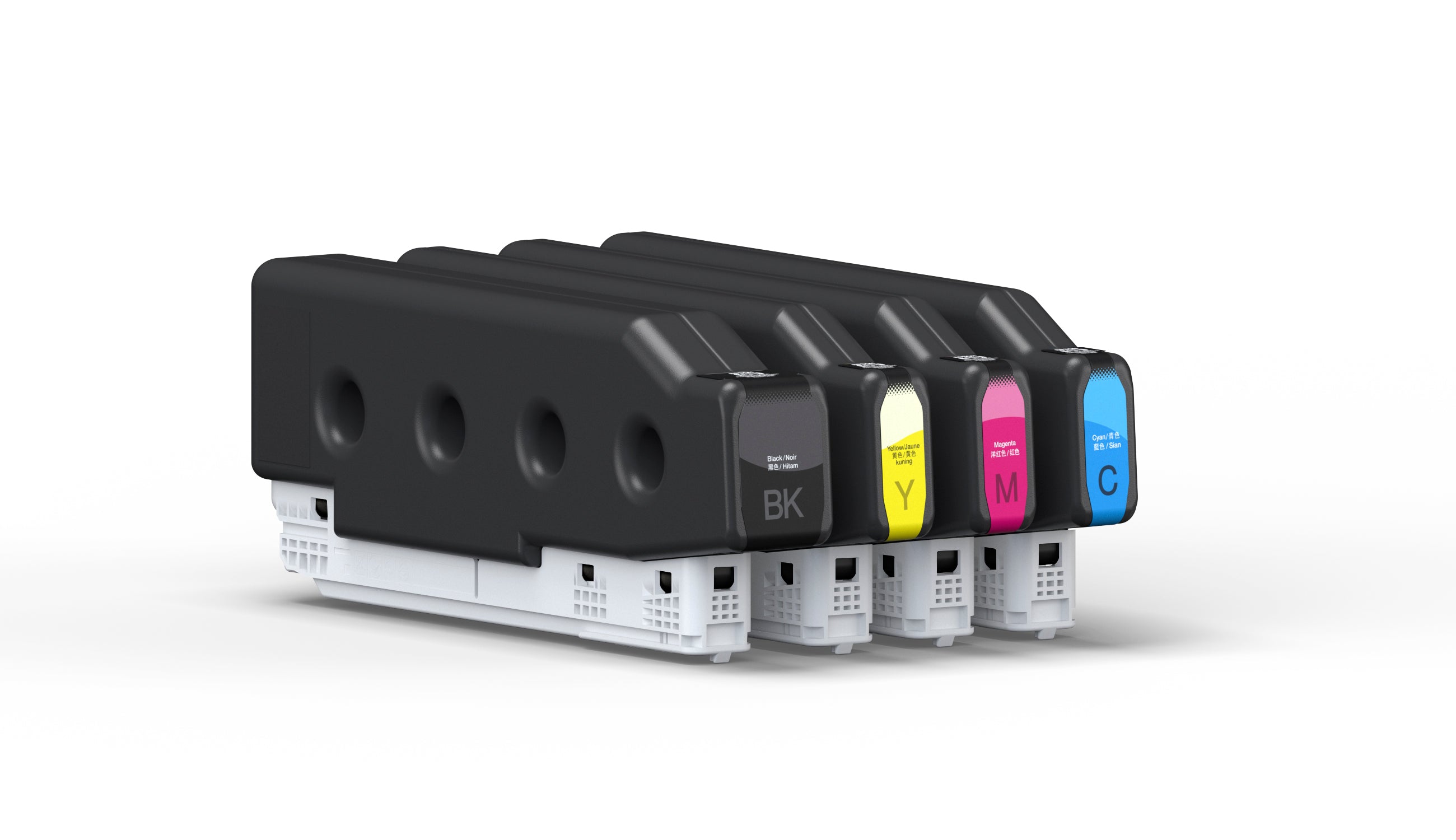

Colours: Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment]
Print from: PC, MAC, Cloud, Direct USB, Mobile Device (WiFi Direct)
Double-sided scanning: Yes
Scan speed (A4 black): 60 ipm ( Monochrome, Single-sided, ADF ) * Scanning in accordance with ISO/IEC 17991; 60 ipm ( Colour, Single-sided, ADF ) * Scanning in accordance with ISO/IEC 17991;
120 ipm ( Monochrome, Double-sided, ADF ) * Scanning in accordance with ISO/IEC 17991; 120 ipm ( Colour, Double-sided, ADF ) * Scanning in accordance with ISO/IEC 17991;
0,4 msec/line ( Colour, 300 dpi, Flatbed ); 0,6 msec/line ( Colour, 600 dpi, Flatbed );
Optical Resolution: 600 DPI x 1.200 DPI (Horizontal x Vertical)
Optical Resolution (ADF): 600 DPI x 600 DPI (Horizontal x Vertical)
Advanced document integration Scan to Email, Scan to FTP, Scan to Network folders, Scan to USB, Computer (Epson Document Capture Pro)
Maximum scan size 297 mm x 431 mm
Output formats: BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, PDF/A, PNG, Secured PDF
Scanner type: Contact image sensor (CIS)
Type of fax: Walk-up black and white and colour fax capability
Fax Transmission Speed: Up to 33.6kbps / Approx. 3 sec/page
Fax speed dials (max): 2.000 names and numbers
Page memory: Up to 550 pages/ 6MB (ITU-T No. 1 chart)
Fax Functions: PC Fax, Fax to E-mail, Memory Reception, Auto Redial, Speed Dial, Fax to Folder, Address Book, Fax Preview, Polling Reception
Copy resolution (dpi): 600 x 600
Reduction / Enlargement: 25 % - 400 %
Maximum number of copies:2.000
Maximum Copy Size: A3
Network Printing Protocols: LPR, FTP, IPP, LPD, Port 2501, Port 9100, WSD, IPSec, WSD-Print, IPPS, IS, Bonjour/Airprint, SMB 1.0, SMB 2.0, SMB 3.0
Network Management Protocols: SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, Ping, SMTP, LLMNR, POP3, IPSec, IEEE 802.1X, ARP, GARP, EAP, ICMP, IGMP, DNS-SD, HTTPS, XMPP, SMTPS, LDAP, LDAPS, SNMP 1.0, SNMP 2.0c, SNMP 3.0, SNMP Trap
Network Protocol: HTTPS, IPv4, IPv6, SNMP
Network Scanning Protocols: WSD-Scan, FTP, SMB 1.0, SMB 2.0, SMB 3.0
Interfaces: Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), USB 2.0-A, Wireless LAN IEEE 802.11a/b/g/n/ac (optional), USB 3.2 Gen 1x1
WLAN Security: WEP 64 Bit, WEP 128 Bit, WPA PSK (TKIP), WPA2 PSK (AES), WPA2 Enterprise (AES), WPA3-SAE(AES)
Network Protocol: TCP, UDP, HTTP, HTTPS, IPv4, IPv6, IPSEC, SSL/TLS
Paper Formats: A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), B6, B5, B4, Letter, Executive, C5 (Envelope), User defined, C4 (Envelope), C6 (Envelope), DL (Envelope), A6 (10.5x14.8 cm)
Automatic Document Feed: 150 pages
Compatible Paper Weight: 52 g/m² - 300 g/m²
Duplex: Yes (A4/A3, plain paper)
Output Tray Capacity: 500 Sheets
Paper Tray Capacity: 1.150 Sheets Standard, 5.150 Sheets Maximum
Standard paper tray(s): 2 x 500-Sheet paper tray
Optional paper tray(s): 2 x 500-Sheet paper tray, Cabinet
Maximum paper input: 5.150
Number of paper trays: 2
Paper Input Name: MPT
Paper Formats: A3, A4, A5, A6, B4, B5, B6, C4 (Envelope), C5 (Envelope), DL (Envelope), Letter, EXE
Custom sizes: Min 55x 140 mm to Max 297x 1.200 mm
Compatible paper weight: 52 g/m² - 300 g/m²
Paper Capacity 1: 150 Sheets of Plain Paper
Paper Capacity 2: 10 Envelopes
Paper Input Name: C1
Paper Formats: A3, A4, A5, A6, B4, B5, C4 (Envelope), C5 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter
Custom sizes: Min 85x 140 mm to Max 297x 431,8 mm
Compatible paper weight: 52 g/m² - 300 g/m²
Paper Capacity 1: 500 Sheets of Plain Paper
Paper Capacity 2: 150 Postcards
Paper Input Name: C2-C4
Paper Formats: A3, A4, A5, A6, B4, B5, C4 (Envelope), C5 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter
Custom sizes: Min 85x 140 mm to Max 297x 431,8 mm
Compatible paper weight: 52 g/m² - 300 g/m²
Paper Capacity 1: 500 Sheets of Plain Paper
Paper Capacity 2: 150 Postcards
Paper Input Name: Duplex
Custom sizes: Min 139,7x 182 mm to Max 297x 431,8 mm
Compatible paper weight: 52 g/m² - 250 g/m²
Paper Input Name: LCT
Paper Formats: A4, B5, Letter
Compatible paper weight: 60 g/m² - 160 g/m²
Paper Capacity 1: 3.000 Sheets of Plain Paper

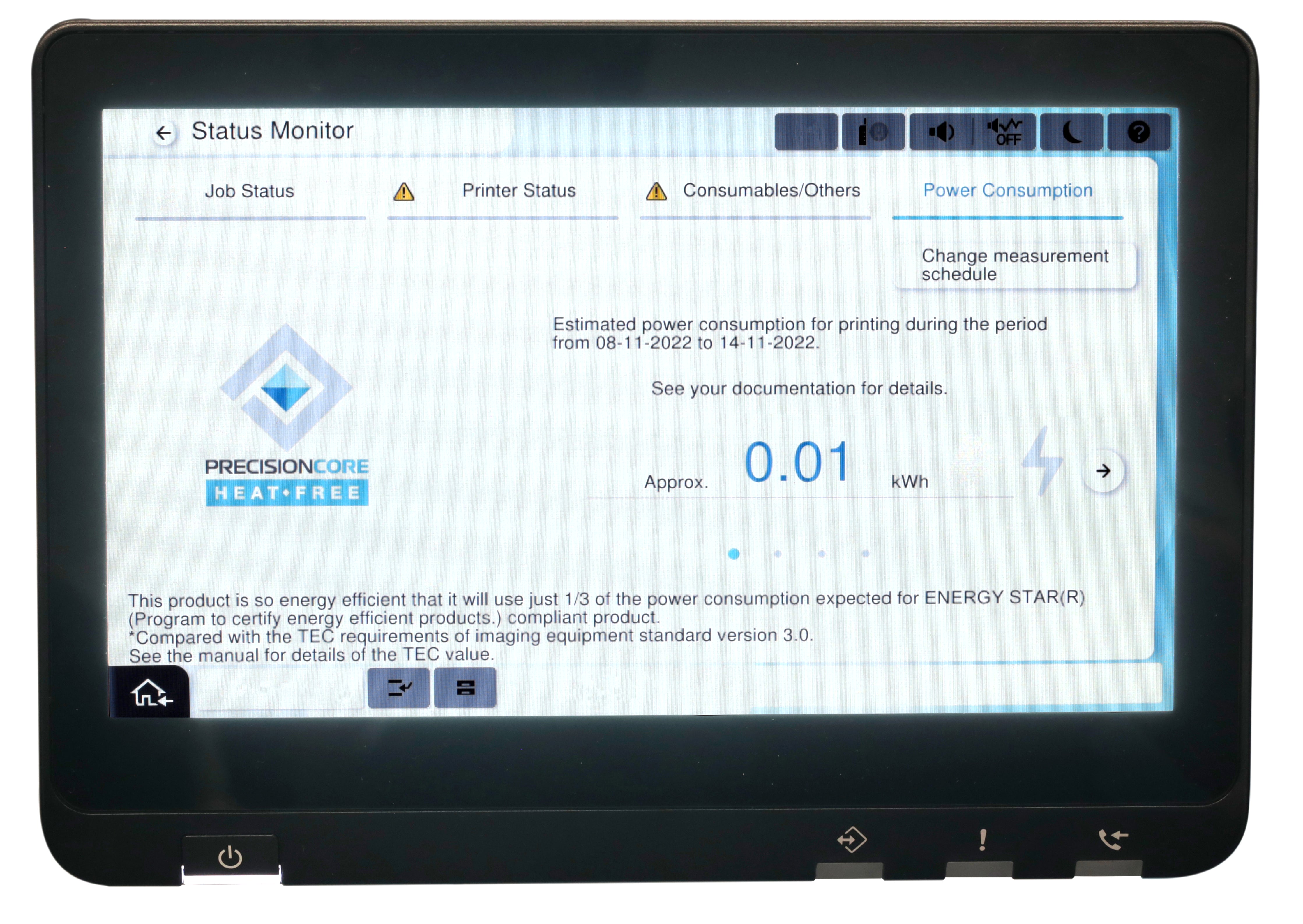

Energy Use: 110 Watt (standalone copying, ISO/IEC 24712 pattern), 1 Watt (sleep mode), 46 Watt (Ready), 0,1 Watt (Power off), TEC 0,22 kWh/week
Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions: 555 x 620 x 1.214 mm (Width x Depth x Height)
Product weight: 124,3 kg
Compatible Operating Systems: Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.9.5 or later, Windows 10 (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, macOS 11 or later
Sound Power: Operation: 6,8 B (A)
Noise: Operation: 53 dB (A)
Mobile and Cloud printing services: Apple AirPrint, Mopria, Epson Smart Panel App, Epson Connect (Email Print, Remote Print Driver)
Power supply: 100V, 220V, 240V
What's in the box: Information sheet, Initialization Ink Supply Units, Power cable, User guide
Optional extras: Hard Drive, Cover Plus warranty extensions, Wi-Fi unit
Memory: 8.192 MB
Features: Touchscreen, Direct Print, Direct print from USB, Nozzle Verification Technology

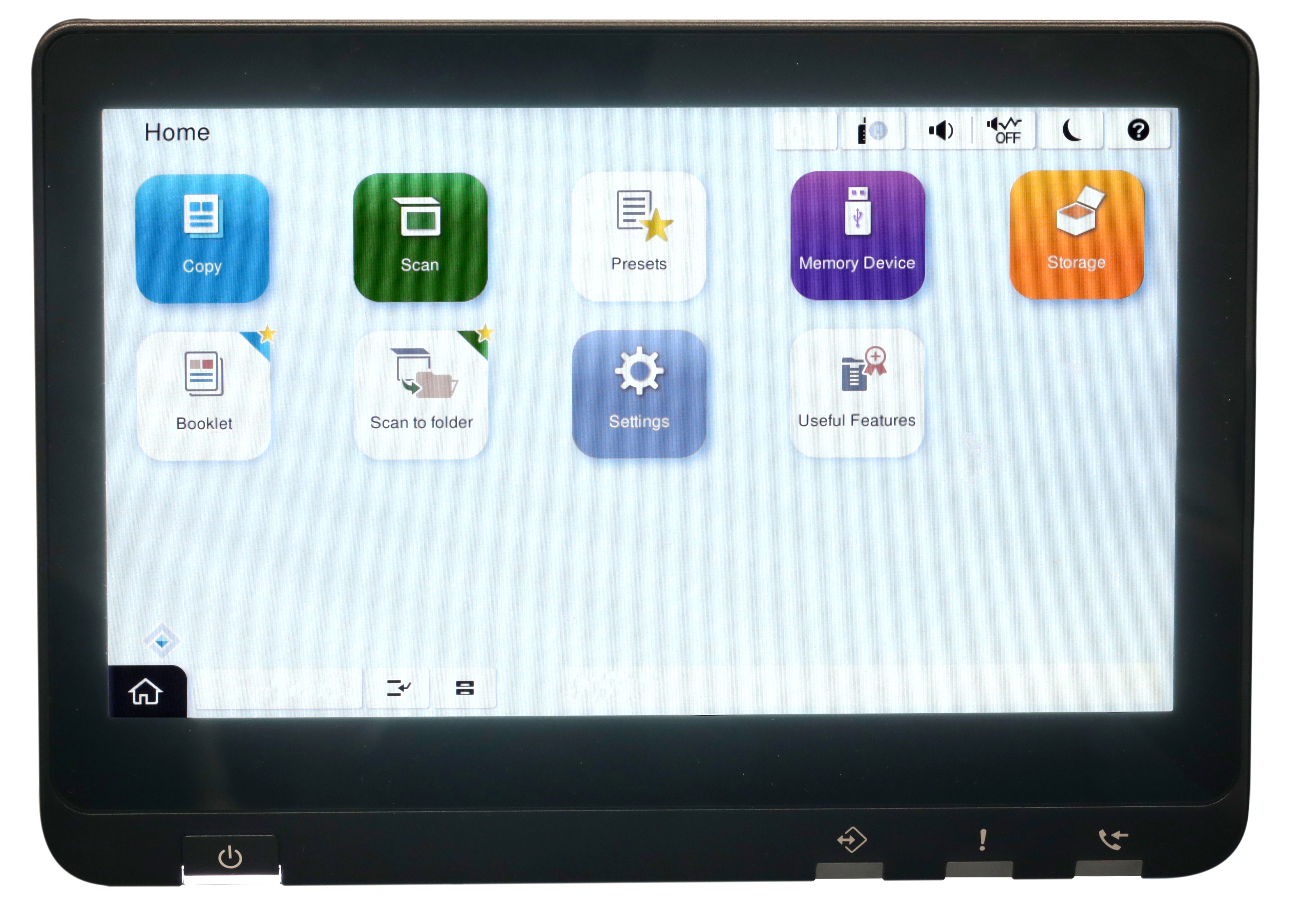

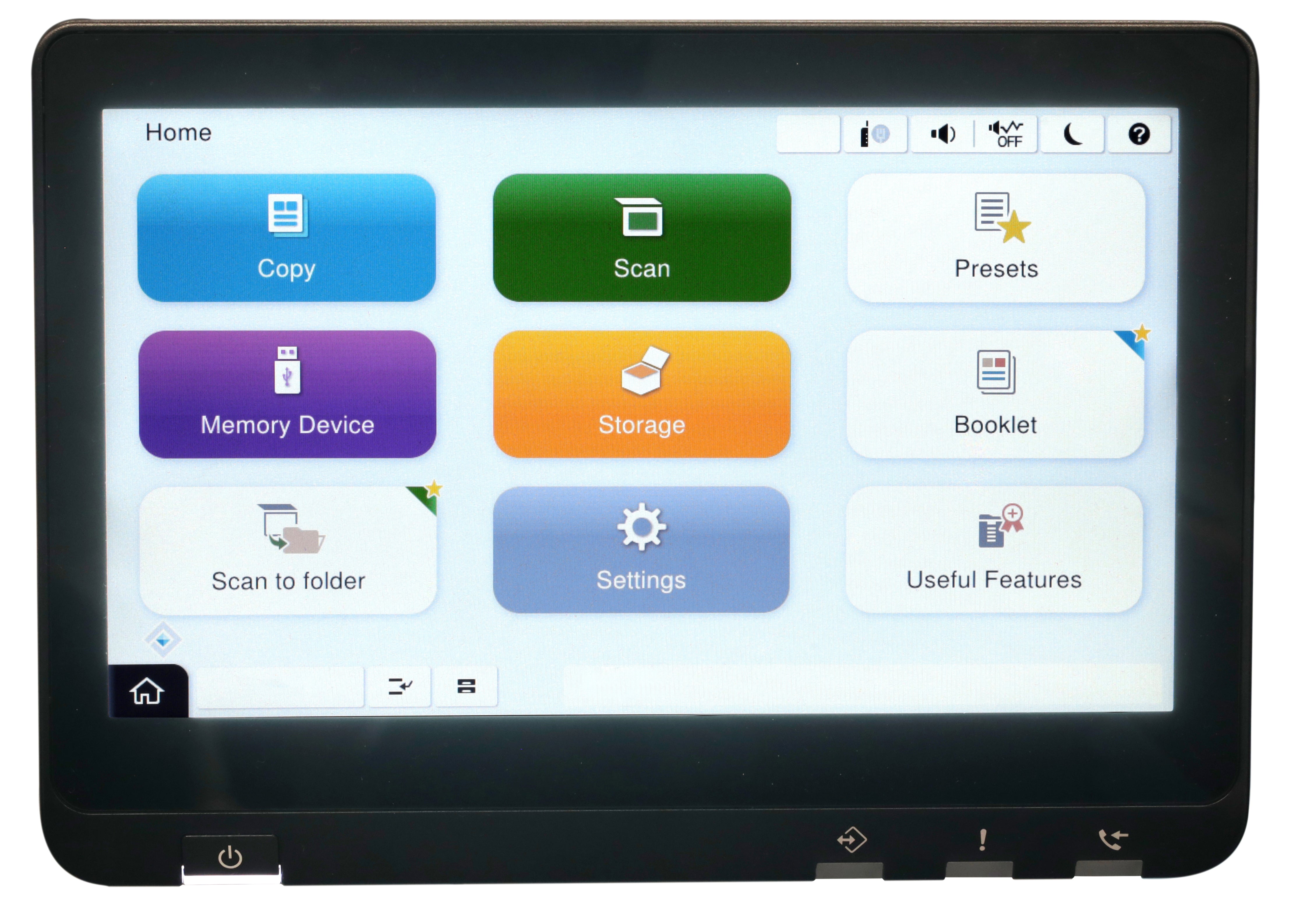

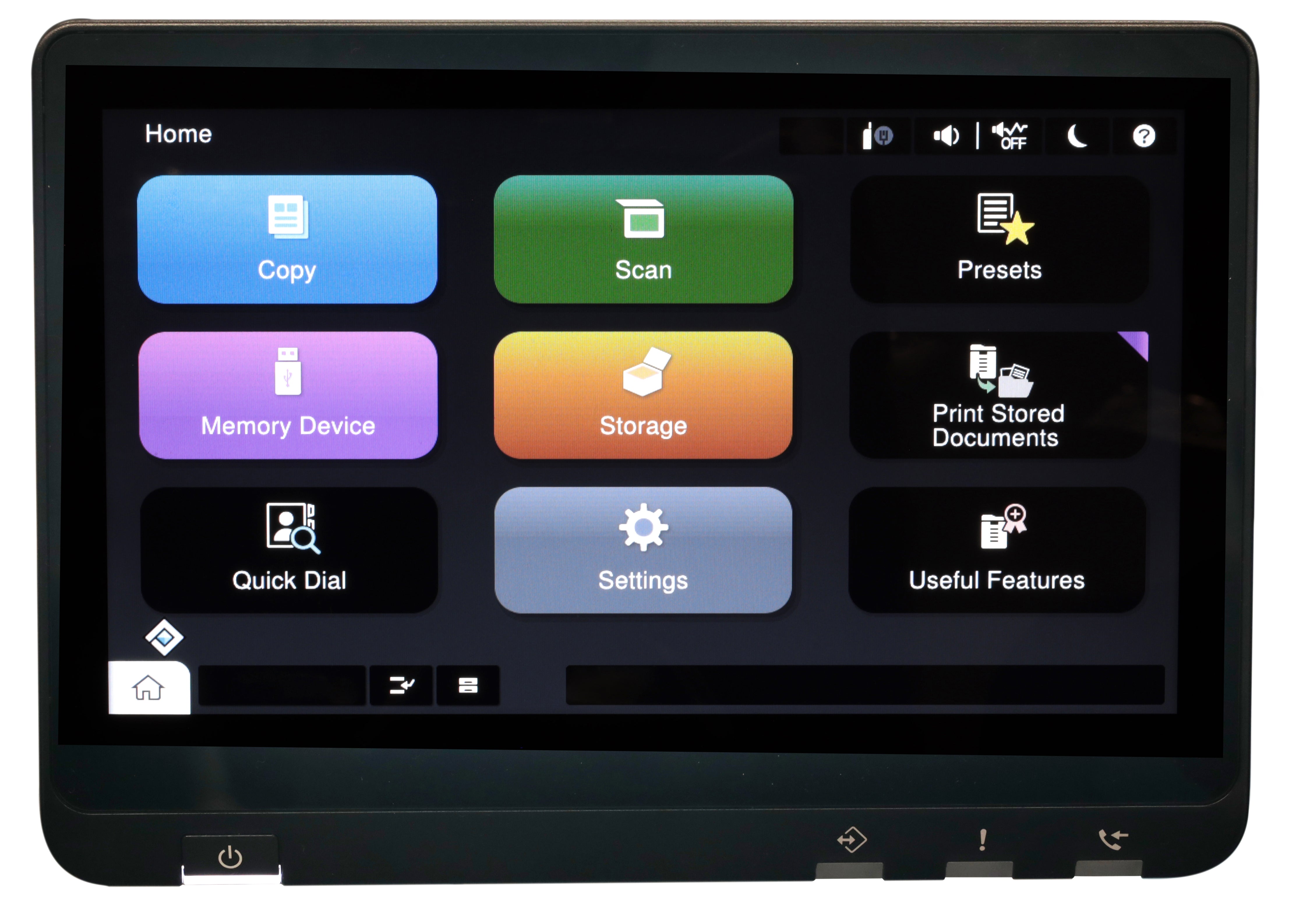

Panel: Type: Color, Touchscreen, Diagonal: 25,7 cm
Media Handling: Duplex (A4/A3, plain paper)
Security Functions: Limit access function with Epson Web Config, Secure confidential printing with PIN code release, IEEE802.1x, Panel Admin Mode
HDD: 320 GB Encrypted AES-256
Emulations: PCL5c, PCL6, PostScript 3, PDF 1.7, ESC/P-R, PCL5e, ESC/Page, ESC/Page-Colour
Optional Software and Solutions Epson Device Admin, Epson Net Config, Epson Print Admin, Epson Print Admin Serverless
Security TLS, TLS V1.1, TLS V1.2, TLS V1.3, SSL, SNMP V3, IPSec, Document Encryption, Data storage Encryption, WPA2, WPA3, PIN code Release, Panel Admin Mode
