Printing Method: PrecisionCore™ TFP print head
Nozzle Configuration: 800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size: 4,6 pl

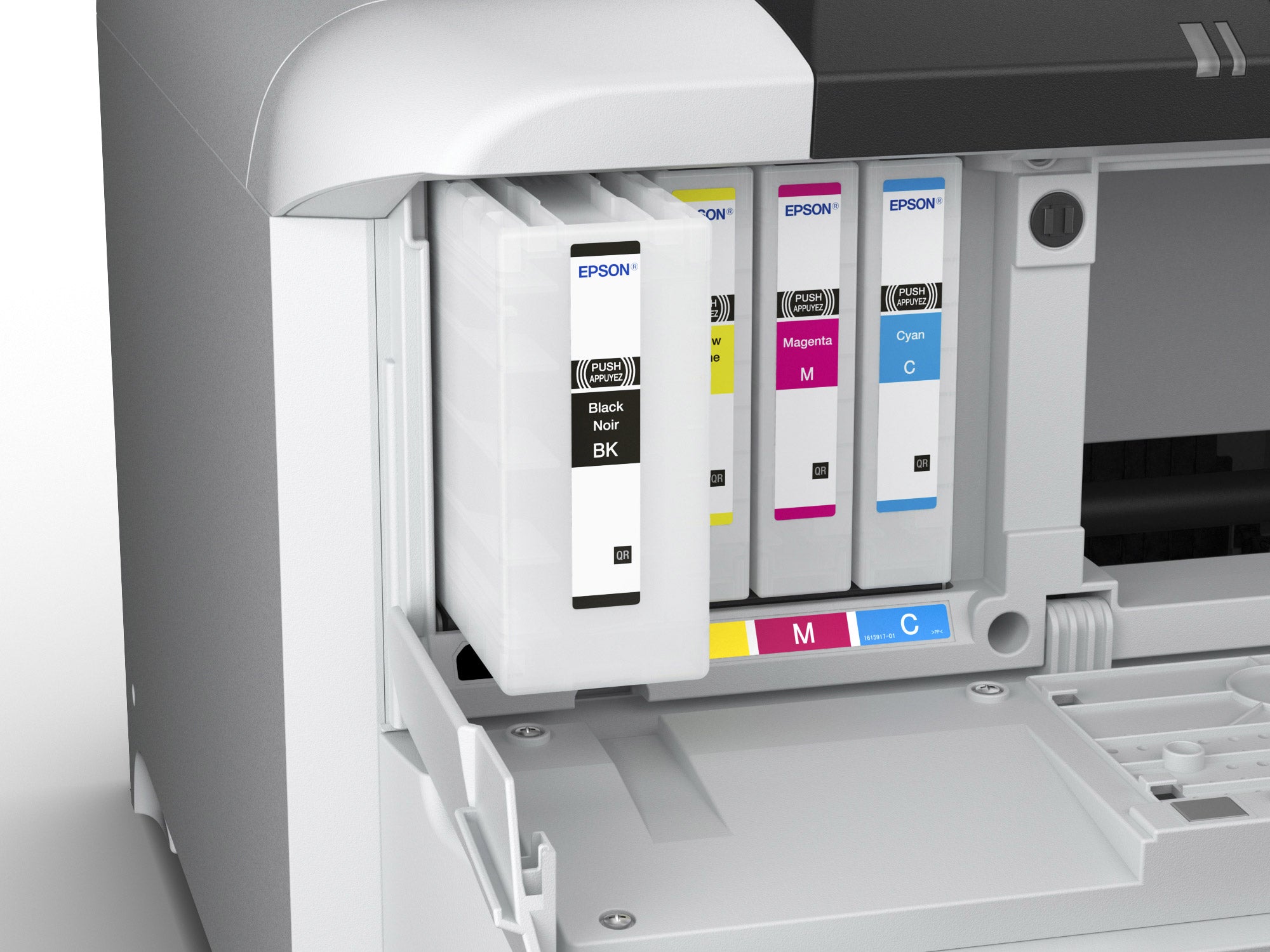

Ink Technology: DURABrite™ Pro
Category: Office Workgroup, Office Departmental
All-in-One Functions: Print
First Page Out: Monochrome 5,5 Seconds, Colour 5,5 Seconds
Printing Speed ISO/IEC 24734: 24 pages/min Monochrome, 24 pages/min Colour
Duplex Printing Speed ISO/IEC 24734: 16 A4 Pages/min Monochrome, 16 A4 Pages/min Colour
Printing Speed ISO/IEC 24734 (A3): 13 pages/min Monochrome, 13 pages/min Colour
Duplex Printing Speed ISO/IEC 24734 (A3): 11 A4 Pages/min Monochrome, 11 A4 Pages/min Colour
Printing Speed: 35 pages/min Monochrome (plain paper 75 g/m²), 35 pages/min Colour (plain paper 75 g/m²)
Printing Resolution: 4.800 x 1.200 DPI
Printing Volume: 75.000 pages per month
Recommended Duty Cycle: 500 - 5.000 pages per month
Network Printing Protocols: IPP, LDP, Port 9100, WSD
Network Management Protocols: SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, Ping
Interfaces: USB 2.0-A, USB 3.0 Type B, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Near Field Communication (NFC)
WLAN Security: WEP 64 Bit, WEP 128 Bit, WPA PSK (AES), WPA2 Enterprise
Network Protocol: TCP/IPv4, TCP/IPv6
Paper Formats: A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), B5, C6 (Envelope), C4 (Envelope), No. 10 (Envelope), Letter, 10 x 15 cm, 13 x 18 cm, 20 x 25 cm, 16:9, Legal, A3 (29.7x42.0 cm), A3+
Compatible Paper Weight: 64 g/m² - 300 g/m²
Duplex: Yes
Standard Paper input: 335 Sheets Standard, 85 Sheets MP tray, 250 Sheets paper tray
Output Tray Capacity: 250 Sheets
Paper Tray Capacity: 250 Sheets Standard, 1.835 Sheets Maximum
Standard paper tray(s): 85-Sheet Multi-Purpose Tray, 250-sheet paper tray
Optional paper tray(s): 3 x 500 sheet paper tray, Cabinet
Maximum paper input: 1.835
Rear paper path (special media): Yes
Number of paper trays: 3
Paper Input Name: RASF
Paper Formats: A3+, A3, A4, A5, A6, B4, B5, B6, C4 (Envelope), C5 (Envelope), C6 (Envelope), DL (Envelope), Letter, 10 x 15 cm, 13 x 18 cm, 16:9, HLT, User defined, Legal, Executive, SRA3, Tabloid
Custom sizes: Min 55x 330 mm to Max 127x 1.200 mm
Compatible paper weight: 64 g/m² - 300 g/m²
Paper Capacity 1: 85 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper
Paper Input Name: C1
Paper Formats: A3, A4, A5, A6, B4, B5, B6, Letter, HLT, Legal, Executive, Tabloid
Compatible paper weight: 64 g/m² - 200 g/m²
Paper Capacity 1: 250 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead
Paper Input Name: Duplex
Paper Formats: A3, A4, A5, B4, B5, B6, Letter, HLT, Legal, Executive
Compatible paper weight: 64 g/m² - 150 g/m²
Energy Use: 37 Watt (standalone copying, ISO/IEC 24712 pattern), 1,2 Watt (sleep mode), 8,5 Watt (Ready), 0,2 Watt (Power off), TEC 0,2 kWh/week
Supply Voltage: AC 220 V - 240 V
Product dimensions: 613 x 755 x 386 mm (Width x Depth x Height)
Product weight: 35,3 kg
Noise Level: 6,7 B (A) according to ISO 7779 pattern with Epson Premium Glossy Photo Paper / Photo RPM mode - 51 dB (A) according to ISO 9296
Compatible Operating Systems: Android 4.0+, Linux, Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003, Windows Server 2003 (32/64bit), Windows Server 2003 R2 x64, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista (32/64 bit), Windows XP SP3, XP Professional x64 Edition SP2
Sound Power: Operation: 6,7 B (A)
Noise: Operation: 51 dB (A)
Mobile and Cloud printing services: Epson Connect (iPrint, Email Print, Remote Print Driver), Apple AirPrint, Google Cloud Print
Power supply: 220V, 240V
What's in the box: Main unit, Power cable, Quick Setup Guide, User Manual (CD-ROM), Warranty card

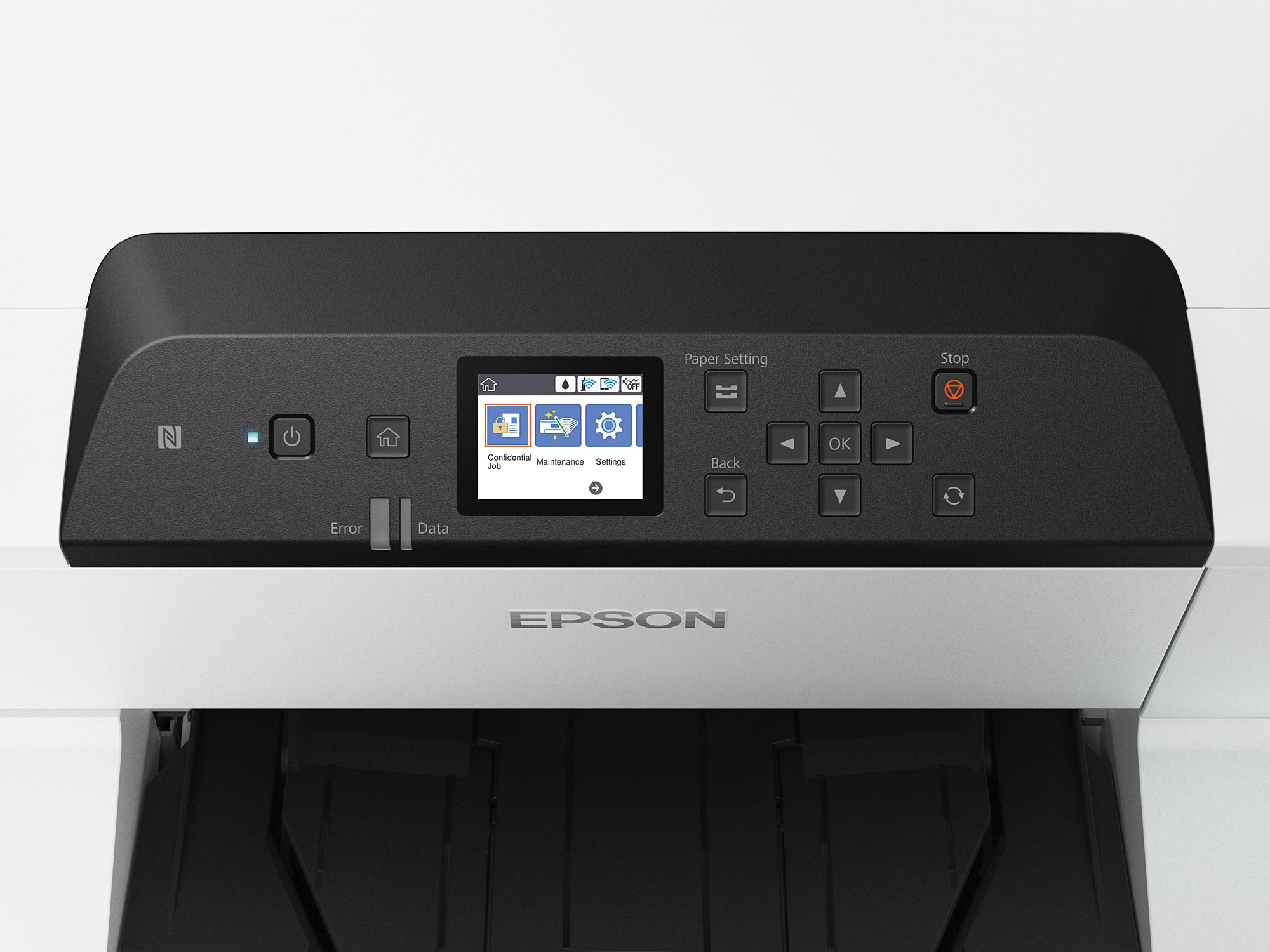

Panel: Type: Color, Diagonal: 6,1 cm
Media Handling: Automatic duplex, Rear specialty media feed, Thick Media Support
Security Functions: Limit access function with Epson Web Config, Secure confidential printing with PIN code release, LDAP Address Book, IPsec, IEEE802.1x, SSL (Server authentication), Panel Admin Mode
Emulations: PCL5c, PCL6, ESC/P-R, PostScript 3, PDF 1.7
WorkForce Pro WF-C8190DW Datasheet / Brochure
